(주)위코

위코 테스트 솔루션

총 7개의 상품이 있습니다.

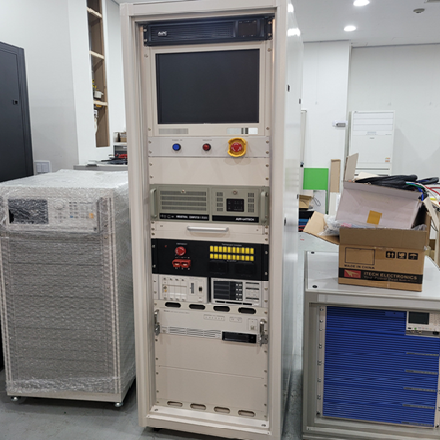

PLASMA POWER ATS

◆ 61512_ 18KW AC Source - 3 Phase Output
◆ 66204 AC Voltage and Current Measuring.
◆ Bulit-in Timing & Noise Analyzer
◆ D.U.T OVP and Short Test

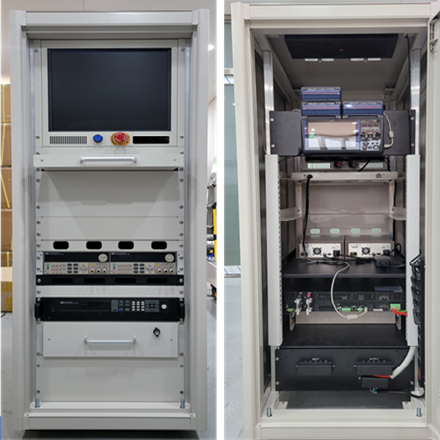

P.R.A(Power Relay Assembly) ATS

◆ CCS1, CCS2
◆ J1772 EV Charging Resistor Circuit
◆ Fire and Smoke detection
◆ Gun Insert Lock

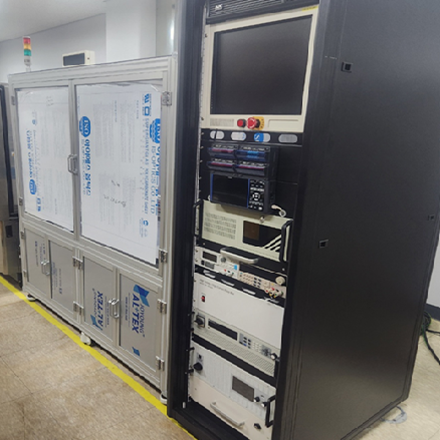

P.R.A _ Reliability ATS (Built-in Test Bench)

◆ 1000A / 1000V Phase Control
◆ <500nS ON/OFF for PRA Relay
◆ Fire and Smoke detection
◆ Door Lock (E.M.Lock)
◆ 3-Ch PRA Relay Control With Single DC Power

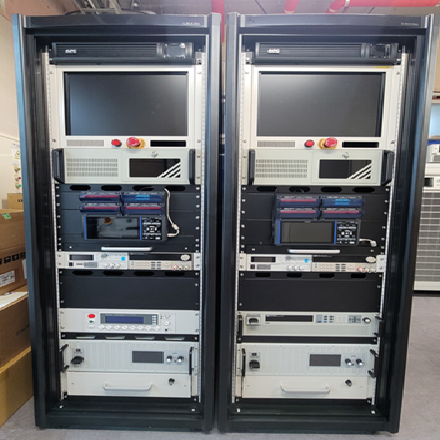

P.R.A (Power Relay Assembly) ATS

◆ 1000A / 1000V Phase Control
◆ 1mS ON/OFF for PRA Relay
◆ 3-Ch PRA Relay Control With Single DC Power
90KW Bidirectional DC Power Supply

◆ High Speed Relay Control (<500nS)
◆ Voltage Rating : 0~1,200VDC
◆ Current Rating : 0~40A
Can operate continuously at full power
Ambient temperature of below 40A at 40℃,
50A at 35℃
55A at 30℃ (< 5 minutes at 35℃).
◆ Dual Output Range in One-click switching
◆ Voltage & Current Slew Rate Control
◆ High Speed Transient Response <1.5mS

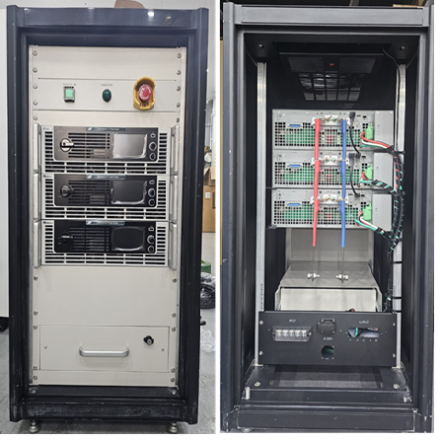

54KW Bidirectional DC Power Supply

◆ High Speed Relay Control (<500nS)
◆ Voltage Rating : 0~600VDC
◆ Current Rating : 0~120A
◆ Dual Output Range in One-click switching
◆ Voltage & Current Slew Rate Control
◆ High Speed Transient Response <1.5mS
